Monel K-500 Ring Manufacturer | UNS N05500 Forged Rings – FH® Alloy

Monel K-500 Ring – Custom Forged & Machined UNS N05500 Alloy Rings
FH® Alloy manufactures custom Monel K-500 rings for marine equipment, pumps, valves, chemical processing machinery, oil and gas equipment, and other demanding applications requiring high strength and corrosion resistance.

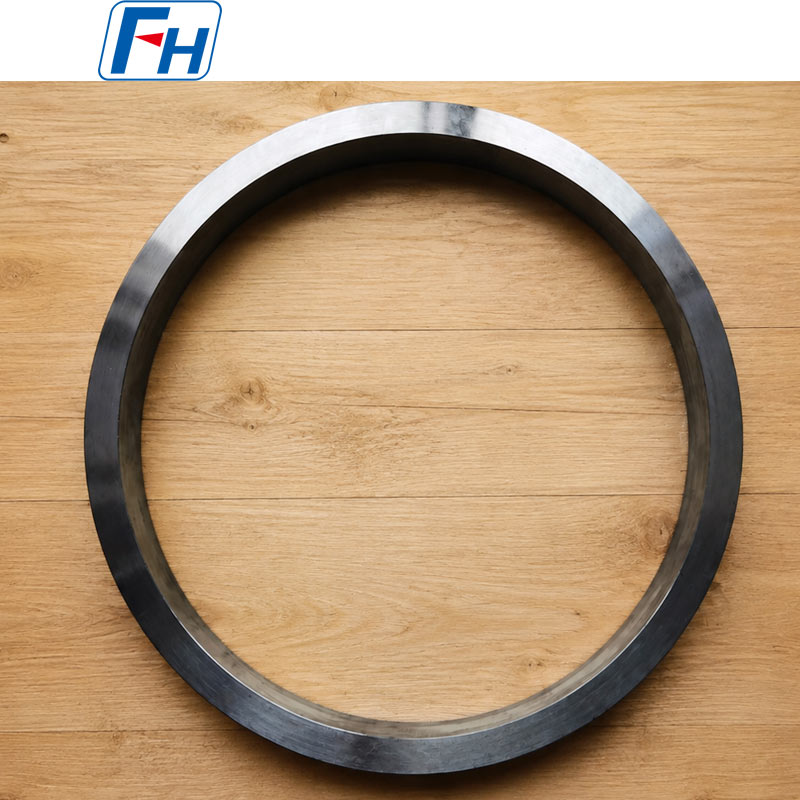

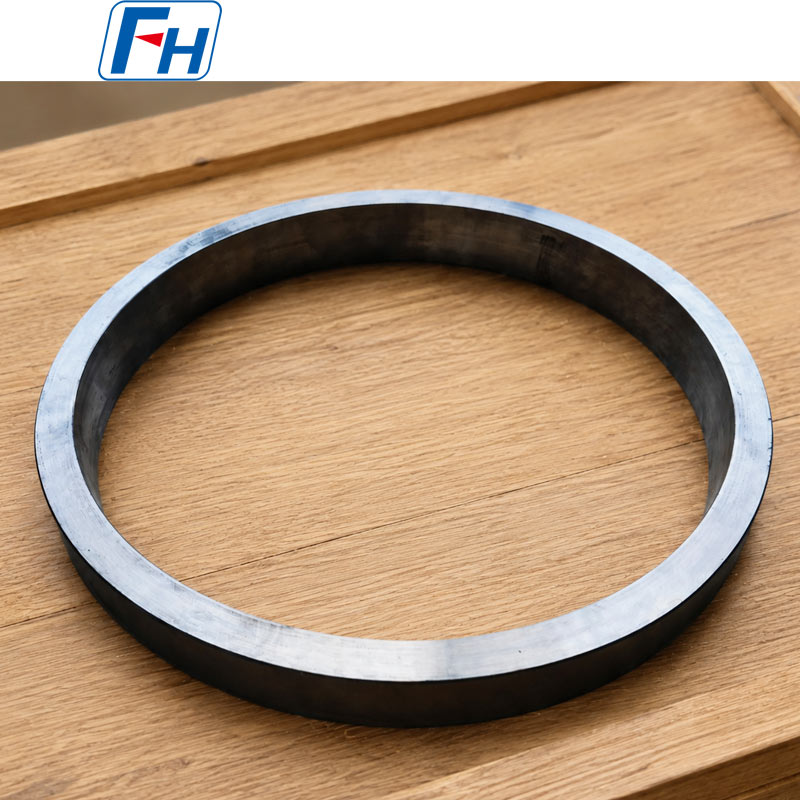

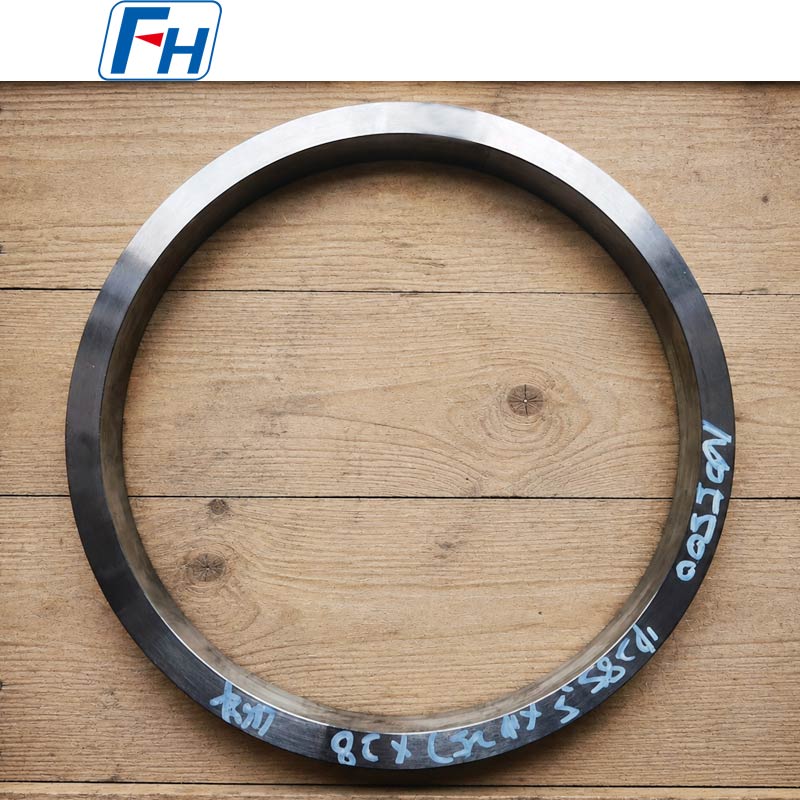

The ring shown is precision-machined from Monel K-500 nickel-copper alloy and finished according to the customer’s specified dimensions and inspection requirements.

Product Specifications

Final dimensions, tolerances, heat treatment condition and inspection requirements should be confirmed by the customer’s drawing or purchase specification.

What Is Monel K-500?
Monel K-500 is a precipitation-hardenable nickel-copper alloy containing controlled additions of aluminum and titanium.
It retains much of the corrosion resistance associated with Monel 400 while providing higher strength and hardness after suitable heat treatment. This combination makes the alloy suitable for components exposed to seawater, mechanical loading, erosion and demanding industrial environments.

Main Product Advantages
High Mechanical Strength
Age hardening gives Monel K-500 significantly higher strength and hardness than conventional nickel-copper alloys, making it suitable for heavily loaded rings, bushings and rotating equipment components.

Corrosion Resistance
The alloy provides good resistance in many marine, saltwater, alkaline and chemical-processing environments.

Good Wear Performance
Its strength and surface durability make it suitable for components exposed to friction, pressure and repeated mechanical loading.

Stable Performance in Marine Service
Monel K-500 is widely selected for seawater-handling equipment, offshore machinery, pump components and marine fastening systems.

Custom Machining Capability
FH® Alloy can manufacture rings according to customer drawings, including specified outer diameter, inner diameter, thickness, groove configuration, chamfers, tolerances and surface finish.

Manufacturing Process
A typical Monel K-500 ring production route may include:

1. Raw material verification

2. Cutting or forging preparation

3. Ring forging or blank forming

4. Solution treatment and age hardening, when specified

5. Rough machining

6. Dimensional inspection

7. Finish machining

8. Surface and visual inspection

9. Marking and protective packaging


The exact manufacturing route is selected according to the ring dimensions, mechanical-property requirements and applicable specification.

Inspection and Quality Control
FH® Alloy can perform or arrange inspection according to the purchase order, drawing and applicable standard.

Available inspection items may include:

• Chemical composition verification

• Dimensional inspection

• Mechanical-property testing

• Hardness testing

• Ultrasonic testing

• Dye penetrant testing

• Visual and surface inspection

• Positive Material Identification

• Heat-treatment record review

• Material Test Certificate


Third-party inspection can be coordinated when required.

Custom Monel K-500 Ring Capabilities
FH® supplies customized Monel K-500 components in different configurations, including:

• Forged rings

• Machined sealing rings

• Retaining rings

• Bearing rings

• Valve rings

• Pump wear rings

• Bushings and sleeves

• Flanges

• Discs

• Custom nickel-alloy parts


Production can be based on customer drawings, samples or technical specifications.

Typical Applications
Monel K-500 rings may be used in:

• Marine pumps and valves

• Seawater-handling systems

• Offshore equipment

• Chemical processing machinery

• Oil and gas equipment

• Pump wear-ring assemblies

• Valve seats and sealing assemblies

• Bearings and bushings

• High-strength fastener systems

• Industrial rotating equipment


Actual material suitability should be evaluated according to the operating medium, temperature, pressure and mechanical load.

Information Required for Quotation
For an accurate quotation, please provide:

• Alloy grade or applicable standard

• Outside diameter

• Inside diameter

• Thickness

• Dimensional tolerances

• Heat-treatment condition

• Required mechanical properties

• Surface finish

• Inspection requirements

• Order quantity

• Drawing or technical specification


Why Choose FH® Alloy?
FH® Alloy provides customized nickel-alloy and corrosion-resistant alloy components for international industrial customers.

Our production capabilities include forging, casting, heat treatment, machining, dimensional inspection and export packaging. Each Monel K-500 ring can be manufactured according to the customer’s drawing and documented quality requirements.

Send your drawing or required dimensions to FH® for a customized Monel K-500 ring quotation.

FAQ
Q1: Can FH® manufacture custom Monel K-500 rings?
Yes. FH® supplies custom Monel K-500 rings based on drawings, samples or technical specifications. Custom options include outside diameter, inside diameter, thickness, tolerances, chamfers, grooves, surface finish and heat-treatment condition.

Q2: Are the Monel K-500 rings forged or cast?
The manufacturing method depends on the size, quantity and technical requirements. For applications requiring high mechanical strength and structural integrity, forged and machined rings are commonly recommended. FH® will select the appropriate production process after reviewing the drawing and service conditions.

Q3: Can FH® provide material and inspection certificates?
Yes. Documentation can be supplied according to the purchase order, including a Material Test Certificate, chemical composition report, mechanical-property report, dimensional inspection report and heat-treatment records.
Additional inspection such as PMI, ultrasonic testing or dye penetrant testing can be arranged when specified.

Q4: Can Monel K-500 rings be supplied fully machined?
Yes. FH® can supply rough-machined, semi-finished or fully machined Monel K-500 rings. Machining services may include turning, boring, facing, chamfering, grooving and final dimensional finishing.

Q5: What surface finish can be provided?
The surface finish can be produced according to the customer’s drawing. Available conditions include forged surface, rough-machined surface and precision-machined finish. Specific roughness requirements should be stated in the inquiry.

Q6:  How are Monel K-500 rings packaged for export?
Finished rings are cleaned, protected against surface damage and securely packed in export-grade wooden cases or wooden pallets. Protective separators and wrapping can be used to prevent collision and moisture exposure during transportation.
