1.4852 + 310S Triangular-Frame Heat Treatment Fixture | FH® Alloy

1.4852 + 310S Triangular-Frame Heat Treatment Fixture
1176 × 1000 × 1090 mm Custom Furnace Fixture for Heat Treatment
FH® Alloy manufactures custom heat treatment fixtures and high-temperature furnace tooling for industrial heat treatment applications.

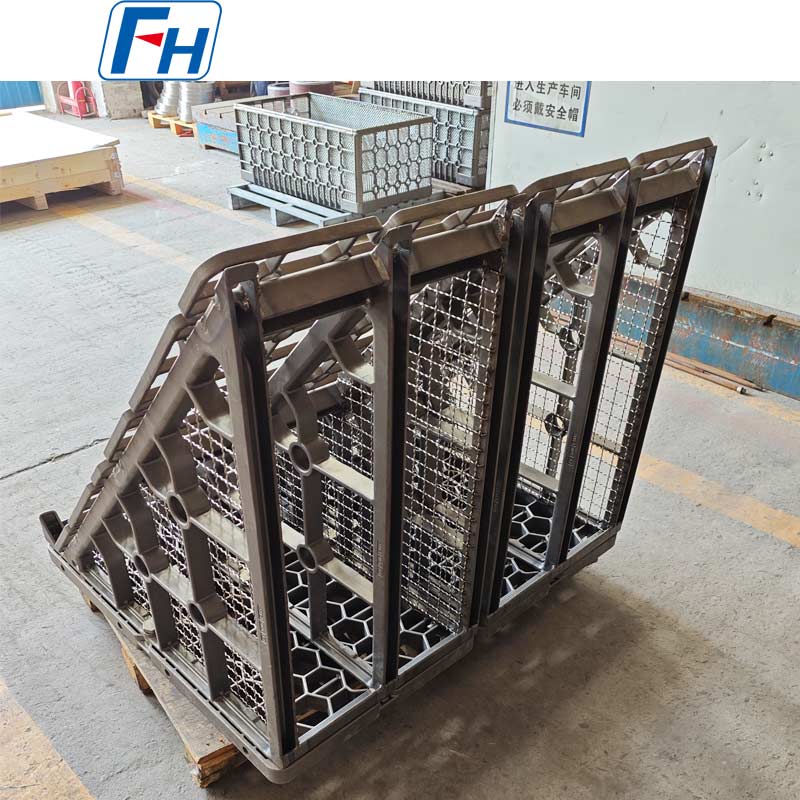

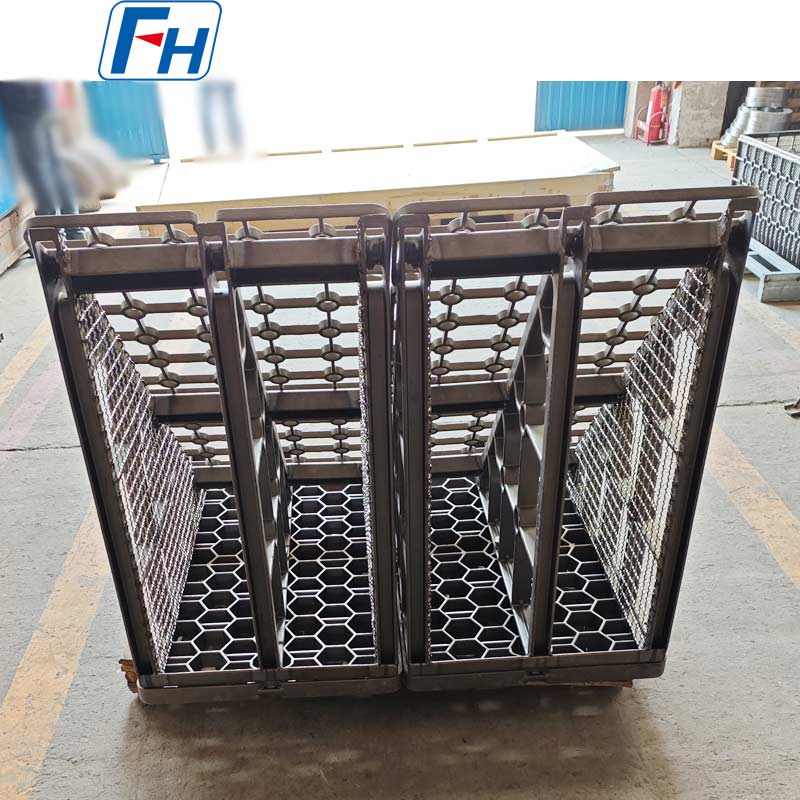

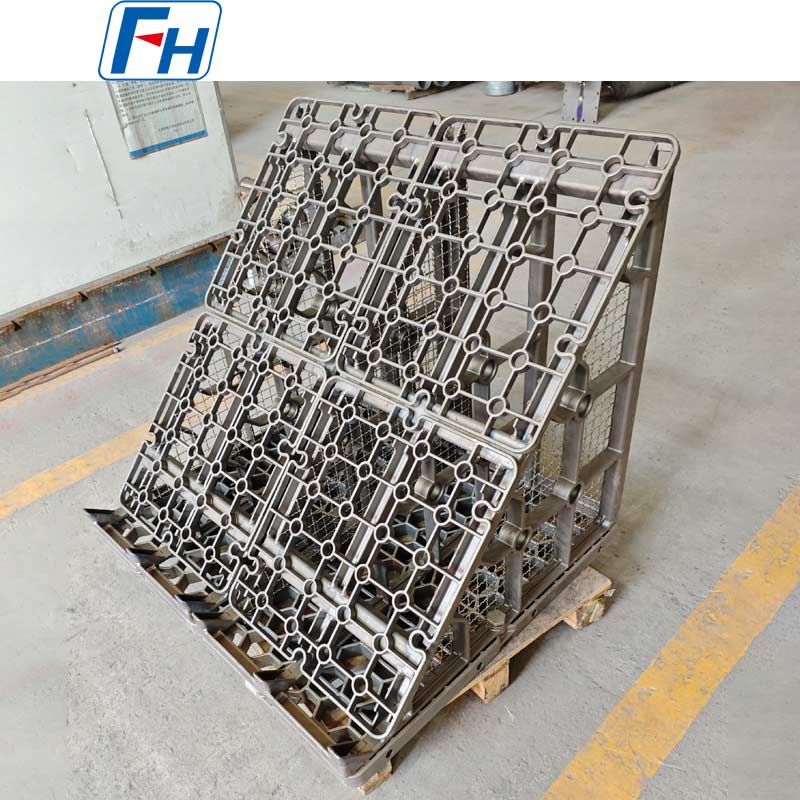

This custom triangular-frame heat treatment fixture is manufactured from a combination of 1.4852 heat-resistant alloy and 310S stainless steel, with overall dimensions of 1176 × 1000 × 1090 mm.

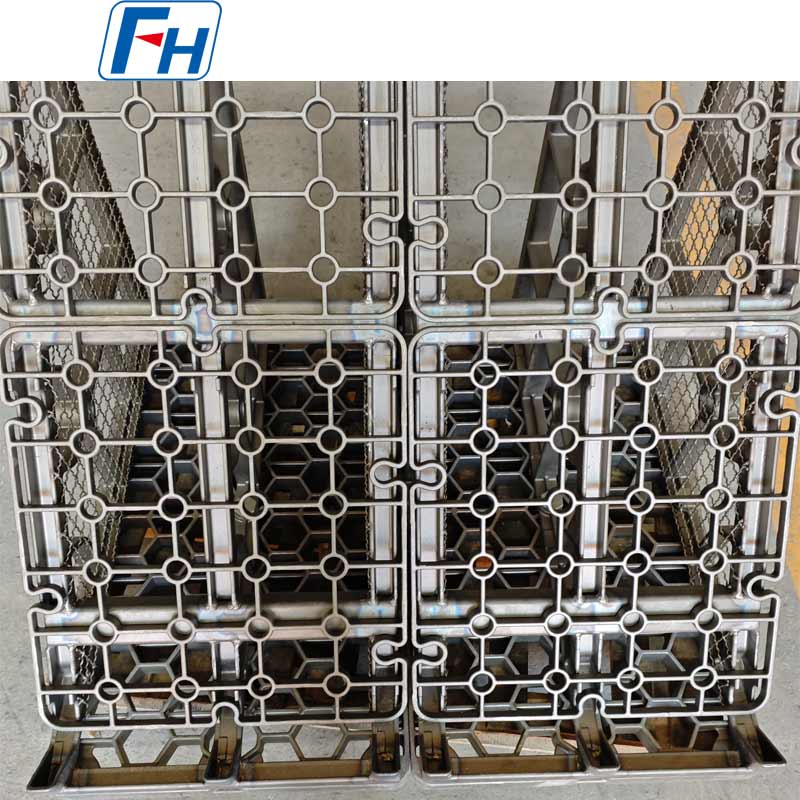

The fixture adopts an open structural design with reinforced supporting sections, providing stable positioning for workpieces while maintaining sufficient space for furnace atmosphere circulation and heat transfer.
Its triangular-frame configuration is designed according to the customer's workpiece arrangement and furnace loading requirements.
FH® Alloy can customize the material, dimensions, support positions, loading structure and overall fixture geometry according to actual operating conditions.

Product Specifications

Triangular-Frame Fixture Design
Unlike a conventional heat treatment basket or tray, this product uses a triangular-frame structural configuration.
The geometry is developed around the customer's specific loading requirements and provides dedicated support positions for the parts being heat treated.

The triangular-frame design can help achieve:

• Stable workpiece positioning

• Efficient use of fixture space

• Controlled spacing between workpieces

• Good structural rigidity

• Open furnace atmosphere circulation

• Convenient loading and unloading


The angle, support spacing and structural layout can all be redesigned for different components.

1.4852 + 310S Material Combination
This heat treatment fixture uses 1.4852 and 310S in different structural sections.
The use of two materials allows the fixture design to match the different thermal and structural requirements of individual components.

1.4852 Heat-Resistant Alloy
1.4852 is commonly used for high-temperature furnace fixtures and structural components.
Typical characteristics relevant to furnace applications include:

• Good high-temperature strength

• Good oxidation resistance
• Good dimensional stability

• Suitability for repeated heating cycles

• Good performance in industrial furnace environments


310S Stainless Steel
310S is widely used for fabricated heat-resistant components because of its combination of:

• High-temperature oxidation resistance

• Good weldability

• Good fabrication performance

• Suitability for furnace structural components


Material selection should always be based on the complete operating environment rather than temperature alone.

Open Structure for Heat and Atmosphere Circulation
Heat treatment fixtures should support the workpieces without unnecessarily blocking furnace atmosphere or heat transfer.
This fixture therefore uses an open-frame structure with large free-flow areas between structural sections.

The design can help provide:

• Better furnace atmosphere circulation

• More uniform exposure of workpieces

• Efficient heat transfer

• Improved cooling media flow

• Reduced unnecessary fixture mass


For different workpieces, FH® Alloy can adjust the support density and opening arrangement.

Reinforced Structure for High-Temperature Service
Industrial heat treatment fixtures operate under repeated thermal and mechanical stress.

During service, the fixture may experience:

• Thermal expansion

• Thermal contraction

• High-temperature creep

• Oxidation

• Mechanical loading

• Thermal fatigue

• Long-term dimensional change


For this reason, fixture design should consider both high-temperature strength and structural stability.
The reinforced sections of this triangular-frame fixture are arranged to support the loaded parts while maintaining sufficient open space around the workpieces.

Designed Around the Workpiece
A custom heat treatment fixture should not be designed only according to the furnace dimensions.
The actual workpieces are equally important.

FH® Alloy can design fixture supports according to:

• Part shape

• Part diameter

• Part length

• Individual part weight

• Number of parts per fixture

• Required orientation

• Required spacing

• Loading and unloading method


This allows the fixture structure to match the actual production process rather than using a generic basket design.

Suitable Heat Treatment Applications
This type of custom heat treatment fixture can be designed for processing:

• Gears

• Shafts

• Rings

• Sleeves

• Bushings

• Automotive components

• Transmission parts

• Forged components

• Mechanical parts

• Other precision metal components


The support layout can be modified for different component geometries.

Furnace Applications
Custom triangular-frame heat treatment fixtures can be developed for different industrial furnace systems, including

• Carburizing furnaces

• Atmosphere furnaces

• Hardening furnaces

• Annealing furnaces

• Batch heat treatment furnaces

• Continuous furnace systems

• Other industrial thermal processing equipment


For carburizing and other controlled-atmosphere applications, the fixture structure should be evaluated together with the temperature, atmosphere, cycle time, load and cooling method.

Custom Heat Treatment Fixture Manufacturing
FH® Alloy supports both new fixture development and replacement fixture manufacturing.

Customers can provide:

• 2D drawings

• 3D models

• Existing fixture samples

• Used fixture photos

• Furnace dimensions

• Workpiece information

• Operating conditions


We can customize:

• Overall fixture dimensions

• Structural geometry

• Material grade

• Material combination

• Support positions

• Reinforcement structure

• Workpiece spacing

• Loading configuration

• Lifting positions

• Locating features


Fixture Design Based on Operating Conditions
For a new custom heat treatment fixture, we recommend providing the following information.

Furnace Conditions

• Furnace type

• Furnace chamber dimensions

• Working temperature

• Maximum temperature

• Furnace atmosphere

• Heating cycle

• Cooling method


Loading Conditions

• Workpiece dimensions

• Workpiece weight

• Quantity per fixture

• Total loading weight

• Workpiece orientation

• Loading method


Existing Fixture Information

• Existing drawing

• 3D model

• Fixture photos

• Current material

• Existing deformation or cracking problems


Based on this information, FH® Alloy can evaluate the appropriate combination of material, structure and fixture weight.

Manufacturing Process
A custom triangular-frame heat treatment fixture may involve:
Requirement Review → Fixture Design → Material Selection → Casting → Machining → Fabrication → Welding → Assembly → Dimensional Inspection → Final Inspection
For a large fixture measuring 1176 × 1000 × 1090 mm, controlling overall geometry and support-position accuracy is particularly important.

Quality Inspection
Before shipment, key inspection items may include:

• Overall dimensions

• Fixture geometry

• Support position accuracy

• Structural alignment

• Weld condition

• Assembly fit

• Surface condition

• Critical locating dimensions


Additional inspection requirements can be provided according to customer specifications.

Other Materials Available
In addition to 1.4852 + 310S, FH® Alloy manufactures heat treatment fixtures from various high-temperature alloys, including:

• 1.4848

• 1.4849

• 1.4852

• 310S

• Cr25Ni20

• Cr25Ni35

• HU

• HT

• HR9

• Nickel-based heat-resistant alloys

• Other customer-specified materials


The final material should be selected according to the actual temperature, atmosphere, cooling process and mechanical load.

Why Choose FH® Alloy?
Wuxi Junteng Fanghu Alloy Technology Co., Ltd. (FH® Alloy) specializes in custom heat treatment fixtures and high-temperature furnace components.

Our manufacturing range includes:

• Heat Treatment Fixtures

• Heat Treatment Baskets

• Heat Treatment Trays

• Base Trays

• Pit Furnace Fixtures

• Furnace Loading Fixtures

• Custom Heat-Resistant Components


We can manufacture according to customer drawings or develop a fixture according to actual furnace and workpiece requirements.

Request a Custom Heat Treatment Fixture
Looking for a replacement furnace fixture or developing a new loading solution?
Send FH® Alloy your:
Drawing + Furnace Type + Operating Temperature + Furnace Atmosphere + Cooling Method + Workpiece Dimensions + Loading Weight
Our engineering team can evaluate the operating conditions and provide a customized heat treatment fixture solution.
FH® Alloy
Custom Heat Treatment Fixtures & High-Temperature Alloy Components

FAQ
Q1: What is this heat treatment fixture made from?
This fixture is manufactured from a combination of 1.4852 heat-resistant alloy and 310S stainless steel.

Q2: What are the overall dimensions?
The fixture measures:
1176 × 1000 × 1090 mm
Custom dimensions are available.

Q3: Why is it called a triangular-frame heat treatment fixture?
The fixture uses a structural arrangement based on triangular support geometry rather than a conventional basket or tray configuration. The structure is designed according to the required workpiece support and loading arrangement.

Q4: Can the support positions be customized?
Yes. Support positions, spacing and structural geometry can be redesigned according to the customer's workpieces.

Q5: Can you manufacture according to our existing fixture?
Yes. FH® Alloy can manufacture according to drawings, 3D models, samples or existing fixture dimensions.

Q6: Can FH® Alloy design a fixture if we do not have a drawing?
Yes. Customers can provide furnace information, operating conditions, workpiece dimensions and loading requirements. We can develop a suitable fixture structure for confirmation.

Q7: Can other materials be used?
Yes. Depending on the operating conditions, materials such as 1.4848, 1.4849, 1.4852, 310S, Cr25Ni20, Cr25Ni35, HU, HT and HR9 can be considered.
