Heat Treatment Rack Heat Treatment Furnace Accessories

Brand: FH

Material: Heat-resistant steel

Material Grade: 1.4848/ HK/ SCH21/ ZG40Cr25Ni20Si2

Size: Customizable

Temperature Up to: 1100℃

Min Order: 2 Piece

Our Cast Trays and Baskets are designed as per customer's requirement.After considering various parameters while designing ,such as maintaing a healthy charge to weight ratio , finally the appropriate material is chosen keeping the application in mind.Our Cast Trays and Baskets find their application in various Thermal and Chemical Processes including Nitriding.

Introduction: heat treating baskets/heat treatment basket

Lost Foam Casting: material tray, material frame, pit furnace, furnace floor;

Precision Casting: Precision castings such as material trays, material baskets, multi-purpose furnace tooling, mixing blades, etc.

Heat Treatment Baskets Imension:

Standard heat treatment baskets with varies of dimensions and heights are available,compatible with the most common furnaces around the world, such as IPSEN, AICHELIN, AFC, ECM, BMI, FENGDONG and ect.

Tailor-Made solutions according to your specific needs.

Heat Treatment Baskets Material:

Different material is available for different heat treatment.

Provide us the max. working temperature and cooling medium, our technical department will recommend the most suitable material.

Application Areas: long-term supply of steel castings for electric furnaces, heat treatment plants, chemical equipment plants and cement plants. Materials include 06Cr19Ni10, Ni7N, 0Cr23Ni13, Cr25Ni20, etc., industrial furnace castings (furnace floor, furnace tube, furnace seat, material tray, material Basket, material frame seat, box, fan blade, fan shaft, etc.).

Production Proces: wax lost process,investment process, EPC process & sand process.
We make heat-resistant steel parts, such as furnace grates, furnace bed plates for cement works, steel mills.
We supply finished heat castings with heat-treated and machined condition if necessary.
We can produce heat steel castings as per GB/T20878, DIN17440. DIN17224, AISI, ASTM, JIS SUH35, NF A35 - 572/584, BS970, BS 1449,150683/13.

Features:

1.Resistance to high temperature: Up to 1200℃;

2.A large number of Existing Patterns of fixture for Standard.Famous Brand Heat-treatment Furnaces.

3.Rich experience in design of Trays&Baskets to suit the secific work condition.

4.More production process available:Wax lost cast process,EPC cast process,Sand cast process.

Quality Level: As per National Standard & International Standards.

Advantages:

Stackable

Maximize Service Time

Minimize Basket Weight

Easy Maintenance

Flatness: 1mm, Minimize the distortion of treated parts

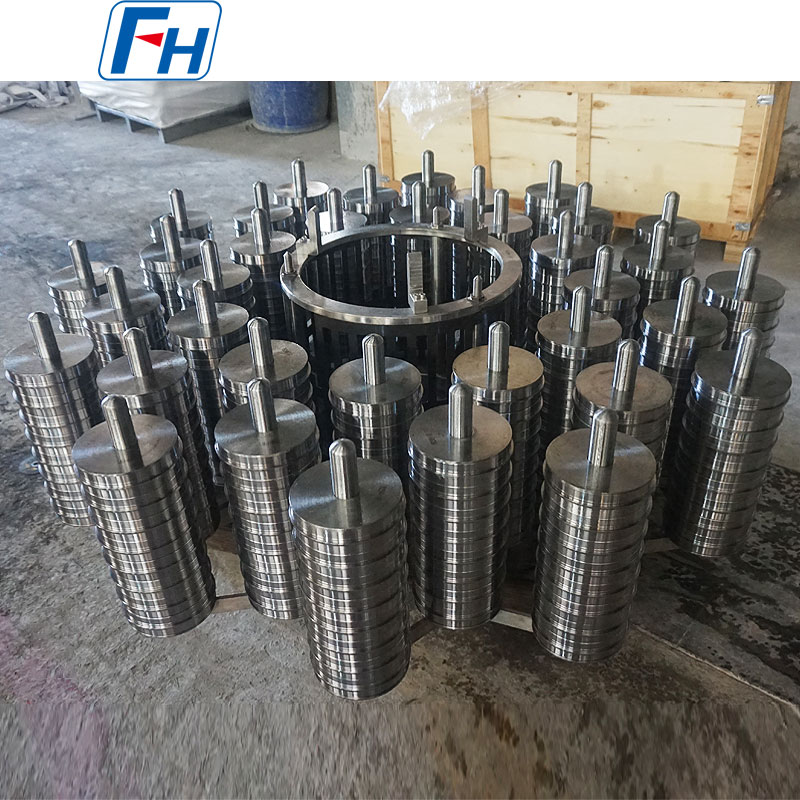

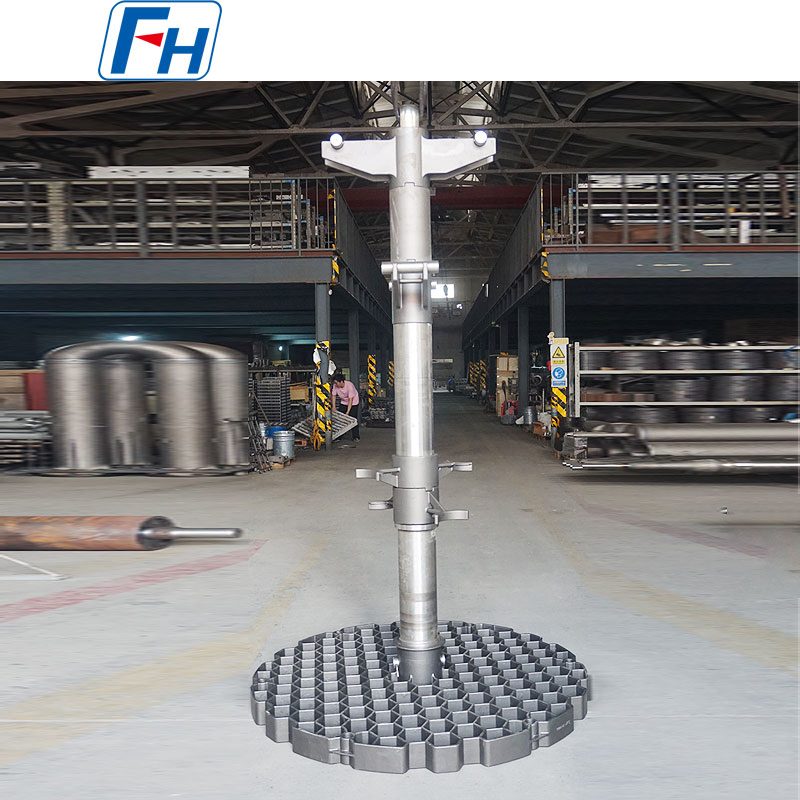

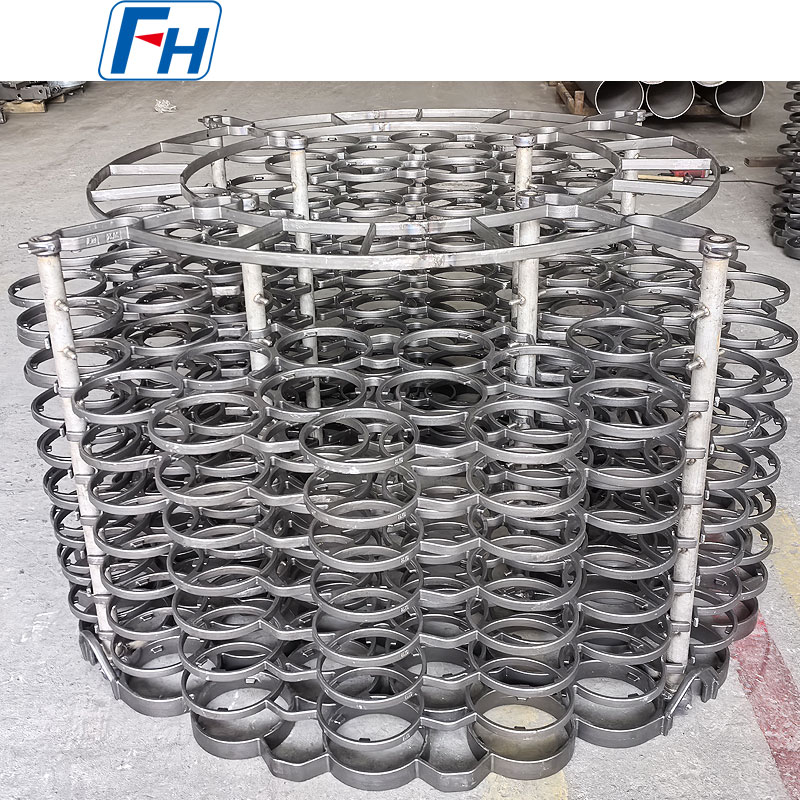

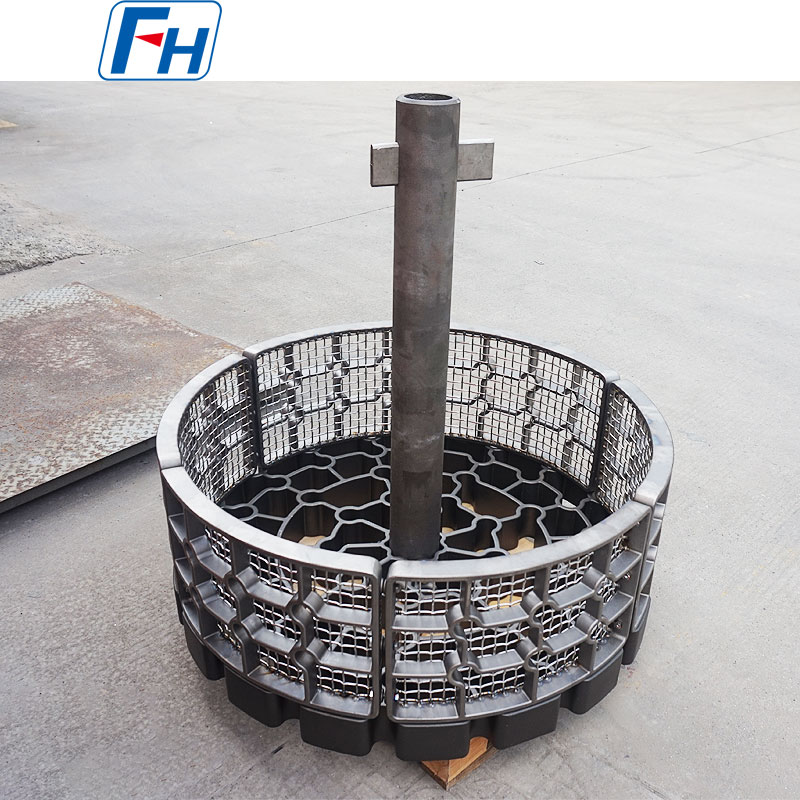

Photos of our heat treatment racks:

Heat-resistant Steel
/	GB (中)	DIN (德)	ASTM (美)	JIS (日)	Chemical Composition (%)								Maximum operation temperature
/	GB (中)	DIN (德)	ASTM (美)	JIS (日)	C	Si	Mn	Cr	Ni	Nb/Cb	Mo	Other	Maximum operation temperature
1	ZG40Cr27Ni4	1.4823	HD	SCH11	0.30 - 0.50	≤2.00	≤1.00	24.00 - 28.00	4.00 - 6.00	-	≤0.50		1050℃
2	ZG40Cr22Ni10	1.4826	HF	SCH12	0.30 - 0.50	1.00 - 2.50	≤2.00	19.00 - 23.00	8.00 - 12.00	-	≤0.50		950℃
3	ZG30Cr28Ni10		HE	SCH17	0.20 - 0.50	≤2.00	≤2.00	26.00 - 30.00	8.00 - 11.00	-	-		1050℃
4	ZG40Cr25Ni12	1.4837	HH	SCH13	0.30 - 0.50	1.00 - 2.50	≤2.00	24.00 - 27.00	11.00 - 14.00	-	≤0.50		1050℃
5	ZG30Cr28Ni16		HI	SCH18	0.20 - 0.50	≤2.00	≤2.00	26.00 - 30.00	14.00 - 18.00	-	-		1100℃
6	ZG40Cr25Ni20Si2	1.4848	HK	SCH21	0.30 - 0.50	≤1.75	≤1.50		19.00 - 22.00	-	≤0.50		1100℃
7	ZG30Cr20Ni25		HN	SCH19	0.20 - 0.50	≤2.00	≤2.00	19.00 - 23.00	23.00 - 27.00	-	-		1100℃
8	ZG40Cr19Ni39	1.4865	HU	SCH20	0.35 - 0.75	≤2.50	≤2.00	17.00 - 21.00	37.00 - 41.00	-	-		1020℃
9	ZG40Cr15Ni35	1.4806	HT	SCH15	0.35 - 0.70	≤2.00	≤2.00	15.00 - 19.00	33.00 - 37.00	-	≤0.50		1000℃
10	ZG40Cr25Ni35Nb	1.4852	HPCb	SCH24Nb	0.30 - 0.50	≤2.00	≤2.00	24.00 - 28.00	33.00 - 37.00	0.8 - 1.8	≤0.50		1100℃
11	ZG40Cr19Ni39Nb	1.4849			0.30 - 0.50	1.00 - 2.50	≤2.00	18.00 - 21.00	36.00 - 39.00	1.2 - 1.8	≤0.50		1100℃
12	ZG40Cr24Ni24Nb	1.4855			0.30 - 0.50	1.00 - 2.50	≤2.00	23.00 - 25.00	23.00 - 25.00	0.8 - 1.8	≤0.50		1050℃
13	ZG40Cr25Ni35	1.4857	HP	SCH24	0.35 - 0.50	1.00 - 2.50	≤2.00	24.00 - 28.00	33.00 - 37.00		≤0.50		1100℃
14	ZG1Cr20Ni32Nb	1.4859			0.06 - 0.15	0.50 - 1.50	≤2.00	19.00 - 21.00	31.00 - 33.00	0.5 - 1.5	≤0.50		1050℃
15	ZG45Cr12Ni60		HW		0.35 - 0.75	≤2.00	≤2.00	10.00 - 14.00	58.00 - 62.00				1100℃
16	ZG45Cr18Ni66		HX		0.35 - 0.75	≤2.00	≤2.00	15.00 - 19.00	64.00 - 68.00				1100℃
17	ZG1Cr28Co50	2.4778			0.05 - 0.25	0.50 - 1.00	≤1.50	27.00 - 30.00	≤1.00	≤0.50	≤0.50	Co:48.0 - 52.0	1200℃
18	ZG30Cr28Co50Nb	2.4779			0.25 - 0.35	0.50 - 1.50	0.50 - 1.50	27.00 - 29.00	-	1.50 - 2.50	≤0.50	Co:48.0 - 52.0	1200℃
19	ZG40Cr28Ni48W5	2.4879		SCH42	0.35 - 0.55	1.00 - 2.00	≤1.50	27.00 - 30.00	47.00 - 50.00	-	≤0.50	W:4.0 - 5.5	1200℃

FAQ:

Q: How to give inquiry ?

A: Step 1, please give us some details about your furnace,operating temperature,cooling method,loading weight of your furnace and so on;

Step 2, it's better to provide 3D drawings;

Step 3, when we have enough details, we may design the products drawings and quote accordingly;

Q: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

Q: When will make delivery ? /What is the delivery Time?

A: -Sample Order: 35 days after receipt of the full payment.

-Stock Order: 10 days after receipt of the full payment

-OEM Order: 30 days after receipt of the deposit.

Q: What's your after-sales service?

A: 1 year warranty for all kinds of products;

If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.

Q: What's your payment condition?

A: T/T

Payment<=USD10000, 100% in advance. Payment>USD10000, 50% T/T in advance ,balance before shipment.

Q: What is the shipping method?

A: Transported by DHL, UPS, EMS, Fedex,Air freight, sea freight or train freight.
