FH® Support Brackets & Rack Stands | Heavy-Duty Heat Treatment Fixture Supports
Key Benefits
- Heavy-Load Bearing
Reinforced design supports heavy basket stacks and large parts – prevents collapse and maintains stable loading. - High-Temperature Strength
Fabricated from heat-resistant alloys – maintains structural integrity at furnace operating temperatures up to 1150°C. - Precision Welded Construction
Laser + TIG welding with full penetration – no weak points, no spatter, no weld drop contamination. - Stacking Compatibility
Designed to interface seamlessly with FH® baskets, trays, and grids – consistent height and alignment. - Custom Configurations
Any height, width, or load capacity – designed for your specific furnace and part requirements.
Technical Specifications
| Parameter | Value |
| Materials | 310S, 1.4806, 1.4848, 1.4849, 2.4879, Inconel |
| Max. continuous temp. | 450°C – 1200°C (depending on material) |
| Load capacity per bracket | 100 kg – 2000 kg (design dependent) |
| Height range | 50 mm – 500 mm (custom available) |
| Top interface | Flat / slotted / pin-located / custom |
| Bottom interface | Flat / feet / anti-slip |
| Fabrication | Precision laser/TIG welding |
| Material test certificate (MTC) included with every FH® bracket | |
Why Choose FH® Support Brackets?
1. The Foundation of Safe Stacking
Poorly designed or weak brackets cause:
- Uneven load distribution – basket tipping or collapse
- Part damage from falling baskets
- Furnace refractory damage from dropped loads
- Operator safety hazards
FH® support brackets are engineered for stability and safety.
2. Material Selection Guide
| Material | Max Temp | Best For |
| Carbon steel | 450°C | Low-temp tempering, cost-sensitive |
| 310S | 950°C | General hardening, carburizing |
| 1.4806 | 1000°C | Higher temperature annealing |
| 1.4849 | 1100°C | Heavy loads, long cycles |
| Inconel | 1150°C | Extreme temperatures |
3. Design Options
| Type | Best For | Key Feature |
| Fixed height | Standard stacking | Simple, strong, cost-effective |
| Adjustable | Variable load heights | Pin or screw adjustment |
| Folding | Storage when not in use | Hinged legs, space-saving |
| Modular | Multiple configurations | Interchangeable extensions |
Applications
1. Support for stacked baskets in box furnaces
2. Layer separation in pit / well-type furnaces
3. Bottom risers for gas circulation under trays
4. Spacers between part layers
5. Support for long or awkward parts
6. All furnace types: box, pit, car bottom, bell
Material Grade Table:
| Heat-resistant Steel | |||||||||||||
| / | GB | DIN | ASTM | JIS | Chemical Composition (%) | Maximum Operation Temperature | |||||||
| C | Si | Mn | Cr | Ni | Nb/Cb | Mo | Other | ||||||
| 1 | ZG40Cr27Ni4 | 1.4823 | HD | SCH11 | 0.30 - 0.50 | ≤2.00 | ≤1.00 | 24.00 - 28.00 | 4.00 - 6.00 | - | ≤0.50 | - | 1050℃ |
| 2 | ZG40Cr22Ni10 | 1.4826 | HF | SCH12 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 19.00 - 23.00 | 8.00 - 12.00 | - | ≤0.50 | - | 950℃ |
| 3 | ZG30Cr28Ni10 | - | HE | SCH17 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 8.00 - 11.00 | - | - | - | 1050℃ |
| 4 | ZG40Cr25Ni12 | 1.4837 | HH | SCH13 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 27.00 | 11.00 - 14.00 | - | ≤0.50 | - | 1050℃ |
| 5 | ZG30Cr28Ni16 | - | HI | SCH18 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 14.00 - 18.00 | - | - | - | 1100℃ |
| 6 | ZG40Cr25Ni20Si2 | 1.4848 | HK | SCH21 | 0.30 - 0.50 | ≤1.75 | ≤1.50 | 23.00 - 27.00 | 19.00 - 22.00 | - | ≤0.50 | - | 1100℃ |
| 7 | ZG30Cr20Ni25 | - | HN | SCH19 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 19.00 - 23.00 | 23.00 - 27.00 | - | - | - | 1100℃ |
| 8 | ZG40Cr19Ni39 | 1.4865 | HU | SCH20 | 0.35 - 0.75 | ≤2.50 | ≤2.00 | 17.00 - 21.00 | 37.00 - 41.00 | - | - | - | 1020℃ |
| 9 | ZG40Cr15Ni35 | 1.4806 | HT | SCH15 | 0.35 - 0.70 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1000℃ |
| 10 | ZG40Cr25Ni35Nb | 1.4852 | HPCb | SCH24Nb | 0.30 - 0.50 | ≤2.00 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | 0.80 - 1.80 | ≤0.50 | - | 1100℃ |
| 11 | ZG40Cr19Ni39Nb | 1.4849 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 18.00 - 21.00 | 36.00 - 39.00 | 1.20- 1.80 | ≤0.50 | - | 1100℃ |
| 12 | ZG40Cr24Ni24Nb | 1.4855 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 23.00 - 25.00 | 23.00 - 25.00 | 0.80 - 1.80 | ≤0.50 | - | 1050℃ |
| 13 | ZG40Cr25Ni35 | 1.4857 | HP | SCH24 | 0.35 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1100℃ |
| 14 | ZG1Cr20Ni32Nb | 1.4859 | - | - | 0.06 - 0.15 | 0.50 - 1.50 | ≤2.00 | 19.00 - 21.00 | 31.00 - 33.00 | 0.50 - 1.50 | ≤0.50 | - | 1050℃ |
| 15 | ZG45Cr12Ni60 | - | HW | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 10.00 - 14.00 | 58.00 - 62.00 | - | - | - | 1100℃ |
| 16 | ZG45Cr18Ni66 | - | HX | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 64.00 - 68.00 | - | - | - | 1100℃ |
| 17 | ZG1Cr28Co50 | 2.4778 | - | - | 0.05 - 0.25 | 0.50 - 1.00 | ≤1.50 | 27.00 - 30.00 | ≤1.00 | ≤0.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 18 | ZG30Cr28Co50Nb | 2.4779 | - | - | 0.25 - 0.35 | 0.50 - 1.50 | 0.50 - 1.50 | 27.00 - 29.00 | - | 1.50 - 2.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 19 | ZG40Cr28Ni48W5 | 2.4879 | - | SCH42 | 0.35 - 0.55 | 1.00 - 2.00 | ≤1.50 | 27.00 - 30.00 | 47.00 - 50.00 | - | ≤0.50 | W:4.0 - 5.5 | 1200℃ |

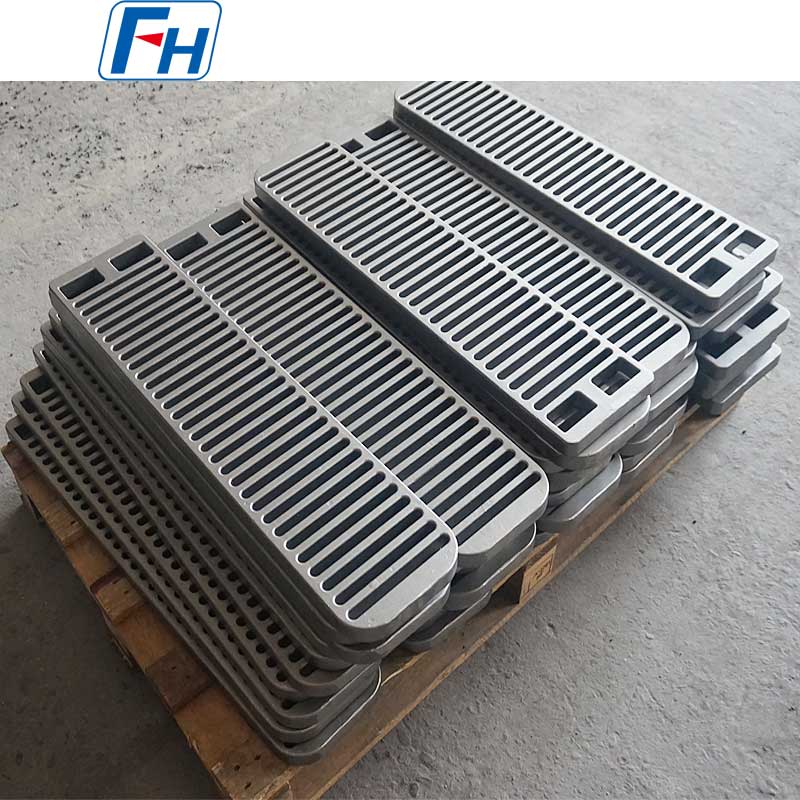

Genuine Photos of FH® Heat Treatment Fixtures
Ordering Process
- Provide required height, width, and load capacity
- Specify operating temperature and atmosphere
- FH® proposes material and design
- Production: 7–15 working days
- Delivery includes MTC and inspection report
FAQ:
Q1: What material do you recommend for support brackets?
A: For ≤700°C: 310S. For 950°C carburizing: 1.4849. For >1000°C: Inconel. Carbon steel is available for low-temperature applications only (≤450°C).
Q2: Can you make brackets to a specific height?
A: Yes – any height from 50 mm to 500 mm. We also offer adjustable designs for variable stacking needs.
Q3: How much weight can a bracket support?
A: Standard designs support 100–500 kg per bracket. Heavy-duty versions support up to 2000 kg per bracket. Tell us your load requirement.
Q4: Do brackets come in sets?
A: Yes – typically 4 brackets per layer (one per corner). Custom quantities available.
Q5: What is your warranty?
A: 12 months against manufacturing defects. Normal wear, creep, and thermal fatigue are not covered.
