Dec 23, 2025 Vacuum furnace heat treatment fixtures/toolings are specialized support systems used in processes such as vacuum heat treatment, vacuum brazing, and vacuum sintering. They operate in the unique environment of extremely low pressure (even ultra-high vacuum) and high temperatures, with design principles that are fundamentally different from those for atmospheric or atmosphere-controlled furnace fixtures.
The core requirements are: To maintain stability under high-temperature vacuum conditions, without volatilizing or contaminating the workpiece and furnace chamber, while ensuring uniform heating.
I. Core Characteristics and Stringent Challenges
1. Extremely Low Volatility (Primary Requirement): The furnace fixture material must have extremely low vapor pressure at high temperatures and under high vacuum. Any volatile substances will directly contaminate the clean furnace environment, condense on the cold walls (typically water-cooled jackets), compromise vacuum integrity, and may deposit on workpiece surfaces, potentially causing product rejection (e.g., affecting brazing quality, degrading superalloy properties).
2. Excellent High-Temperature Creep Strength: Vacuum furnaces are often used for high-value workpieces (e.g., aerospace components, tooling, dies) at very high temperatures (up to 1300°C or even above 2200°C). Fixtures must support loads at these temperatures for extended periods without significant deformation.
3. Excellent Chemical Stability and Cleanliness: The material itself should be highly pure, free of low-melting-point impurities (e.g., zinc, cadmium, lead). Surfaces must be clean, free of oils, moisture, and oxide residues, as these substances can volatilize intensely under vacuum.
4. High Thermal Radiation Characteristics: In a vacuum environment, heat transfer relies almost entirely on radiation. Therefore, the surface condition (emissivity) of the fixture material and its structural design are crucial for achieving uniform heating of the workpiece.
5. Matched Coefficient of Thermal Expansion (CTE): The difference in thermal expansion between the fixture and workpiece during heating and cooling generates stress, which can lead to workpiece distortion or fixture damage.
II. Primary Material Selection
The choice of material for vacuum furnace heat treatment fixtures is the core of their design and determines the success or failure of the process.
1. Graphite:
2. Molybdenum and Tungsten:
3. Refractory Metal Alloys (e.g., TZM: Titanium-Zirconium-Molybdenum alloy):
4. Ceramics:
5. Superalloys (e.g., Inconel 600/601/617, Haynes 230):
III. Main Types and Design Key Points

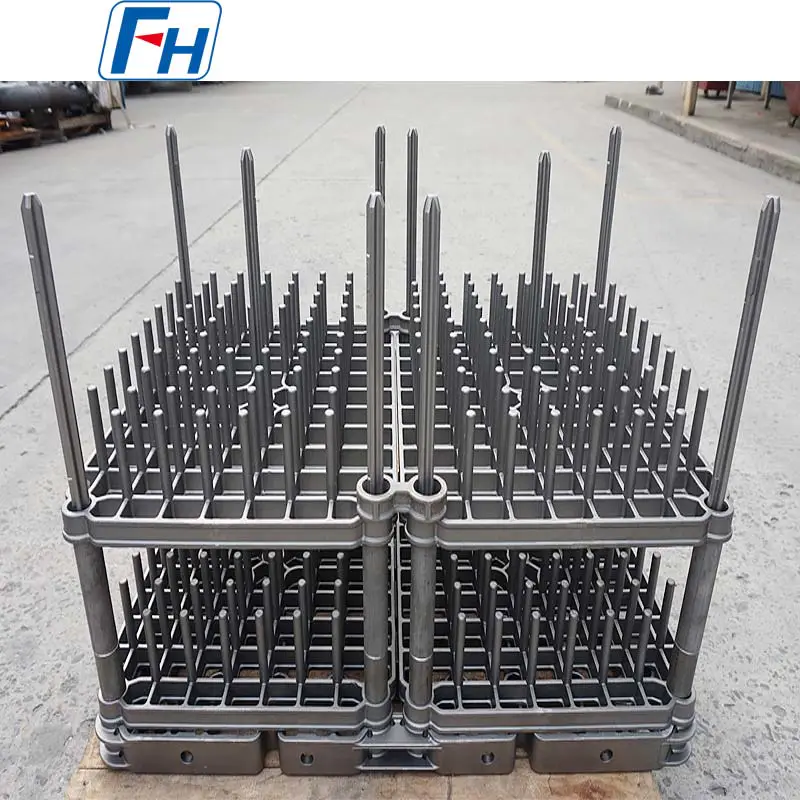

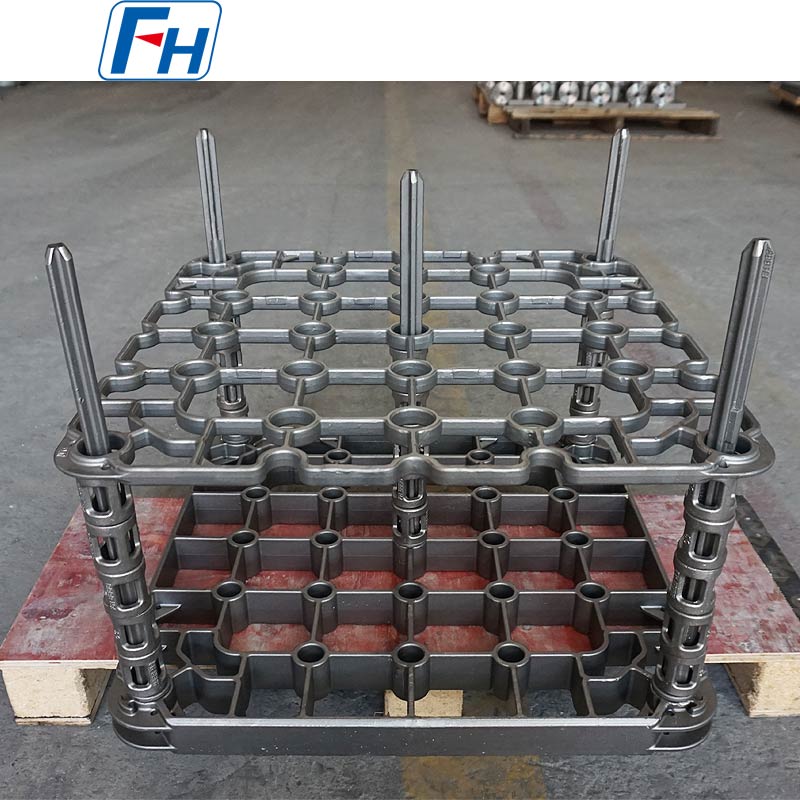

1. General-Purpose Load-Bearing Type:
2. Dedicated Fixtures and Molds:
3. Heating Elements and Heat Shields (Although not direct fixtures, they are critical system components):
IV. Design Best Practices
1. "Blackbody" Radiation Design: Optimize fixture shape to form a cavity conducive to uniform radiation. Examples include using perforated heat shields or designing multi-layer reflective structures.
2. Minimize Contact Area: Use point, line, or small-area contact to reduce local temperature gradients caused by heat conduction and to prevent bonding/welding between workpiece and fixture.
3. "Thermal Match" Design: For multi-layer assemblies (e.g., brazed components), carefully calculate the thermal expansion sequence of each material layer, and design structures that allow free expansion or have compensation capabilities.
4. Thorough Pre-conditioning: All fixtures (especially graphite and molybdenum) must undergo extended high-temperature vacuum baking (above process temperature) before first use to remove adsorbed gases and impurities.
5. Dedicated Fixtures for Dedicated Uses: Avoid cross-contamination by not mixing fixtures. For example, fixtures used for titanium alloys must never be used for superalloys to prevent harmful intermetallic reactions (e.g., between Ti and Al).
V. Usage, Maintenance, and Safety
1. Strict Cleaning: Fixtures must be ultrasonically cleaned with solvents like anhydrous ethanol or acetone before and after use, followed by complete drying.
2. Handle with Care: Graphite and ceramic fixtures are very brittle and require extremely careful handling.
3. Regular Inspection: Check graphite parts for cracks and spalling; inspect metal parts for oxidation and deformation.
4. Atmosphere Control: Ensure the purity and dryness of the process atmosphere (e.g., high-purity argon) to protect fixtures from accidental oxidation.
5. Safety First: Strictly prohibit exposing graphite fixtures to air or oxygen-rich atmospheres at high temperatures, due to the risk of explosion and fire.
Summary
Vacuum furnace fixtures/ Toolings are the critical interface connecting the ultra-high-purity process environment with high-performance products. They are not merely physical supports but are guardians of process purity, shapers of the thermal field, and guarantors of workpiece precision.
The core logic for their selection and design is: To make a trade-off among graphite (economical, high-temperature), refractory metals (very high temperature, high purity), ceramics (ultra-clean, inert), and special alloys (complex structures, medium temperature), based on process temperature, workpiece material (carbon sensitivity), and cleanliness requirements.
Investing in correctly designed and maintained vacuum furnace fixtures is a necessary prerequisite for ensuring the success of high-value-added heat treatments in fields such as aerospace, semiconductors, and premium cutting tools. It represents a deep understanding and mastery of material and process limits.
