Design and R&D
With over 10 years of experience in the design field, we are committed to providing the heat treatment industry with products that are lighter, stronger, and have a longer service life.
  • Design products and drawing with CAD and UG.
  • Simulation control of casting process with ANYCASTING
  • Stress simulation analysis with ABAQUS.
  • Wuxi Junteng Fanghu Alloy Casting Co., Ltd.

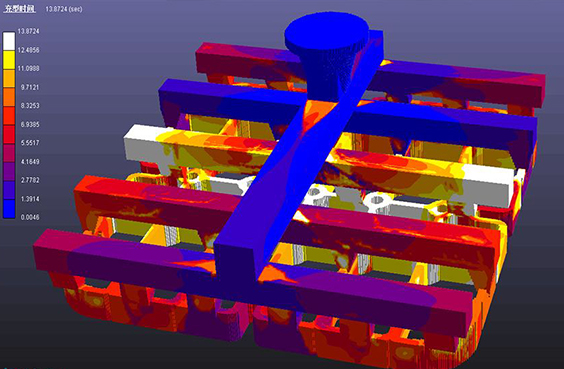

    Casting process simulation modeling ANYCAST

  • Wuxi Junteng Fanghu Alloy Casting Co., Ltd.

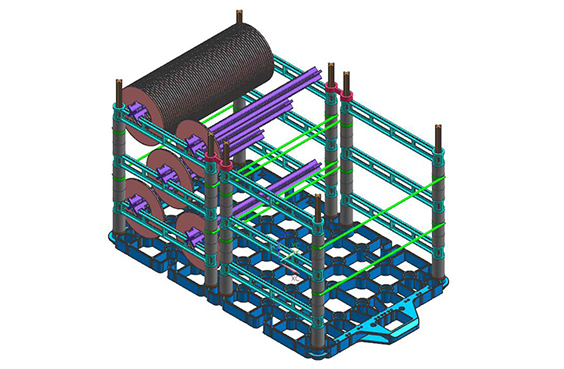

    Fixture Design

  • Wuxi Junteng Fanghu Alloy Casting Co., Ltd.

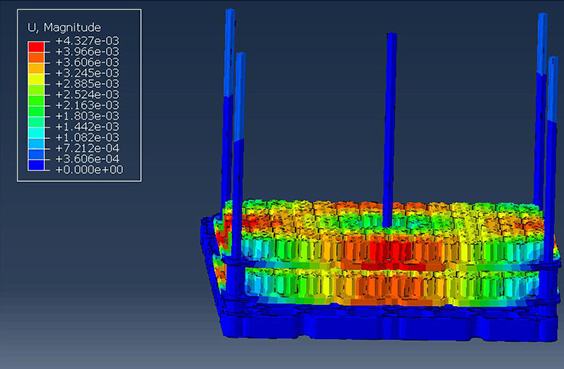

    Stress simulation analysis ABAQUS

Successful Case

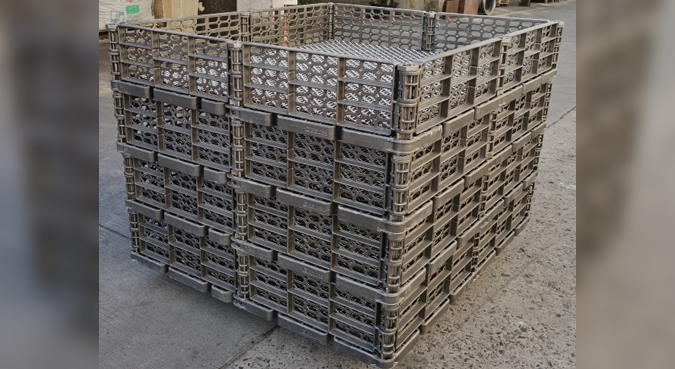

  • Customized Heat Treatment Basket for Continuous Furnace

    1380x1230x280mm (54.3x48.4x11 inch)

    Advantages:
    1. The basket dimensions are custom-made to fit the furnace loading size, maximizing the load capacity.

    2. All four sides of the basket are removable, making maintenance and replacement easy.

    3. By detaching the sides, the basket can be converted into a base tray, tailored to the customer's specific application.

    4. The hollowed sides of the basket reduce its weight, allowing for maximum load capacity and enhancing heat treatment efficiency.

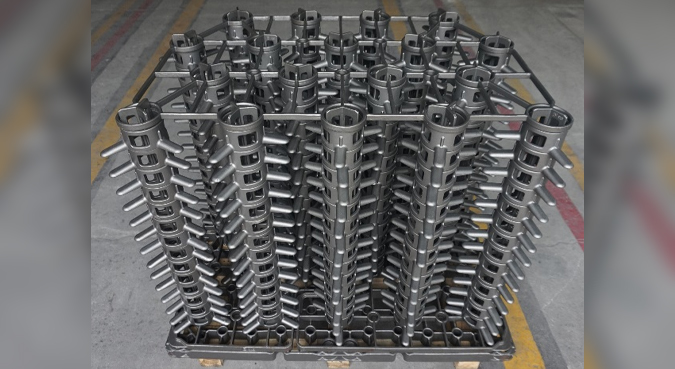

  • Customized Heat Treatment Fixtures for IPSEN Batch Furnace

    1170x860x910mm (46x33.8x35.6 inches)

    Advantages:
    1. The fixture dimensions are tailored to match the furnace loading size and gear specifications, maximizing loading capacity.

    2. Specially designed fixtures minimize distortion of gears during the heat treatment process.

    3. Fixture weight is reduced based on gear dimensions, enhancing heat treatment efficiency.

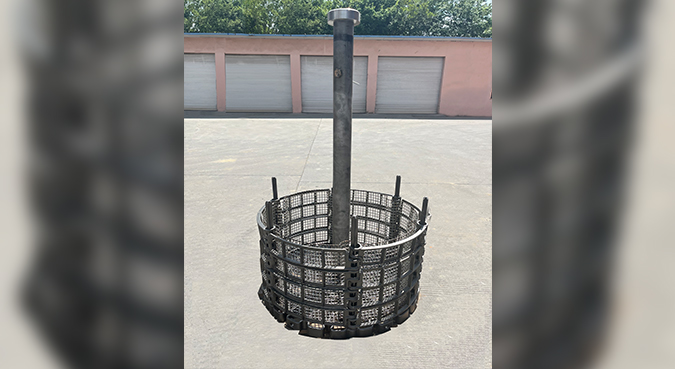

  • Customized fixtures for bell type furnace

    ∅900x1400mm

    1. Tailored dimensions to match the furnace

    2. Easy maintenance and replacement of accessories

    3. Minimum weight to make max. load capacity
